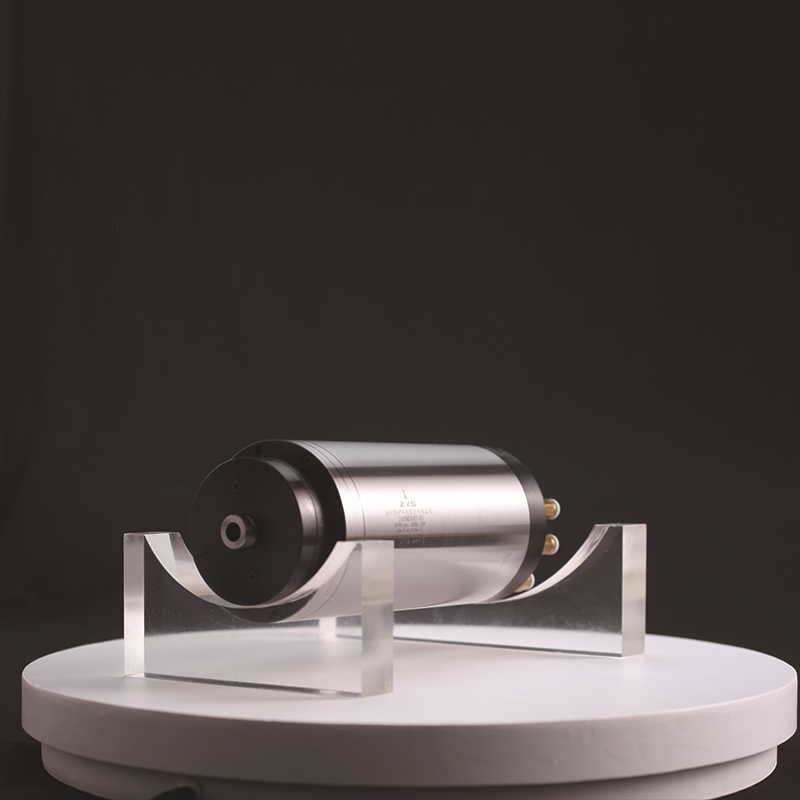

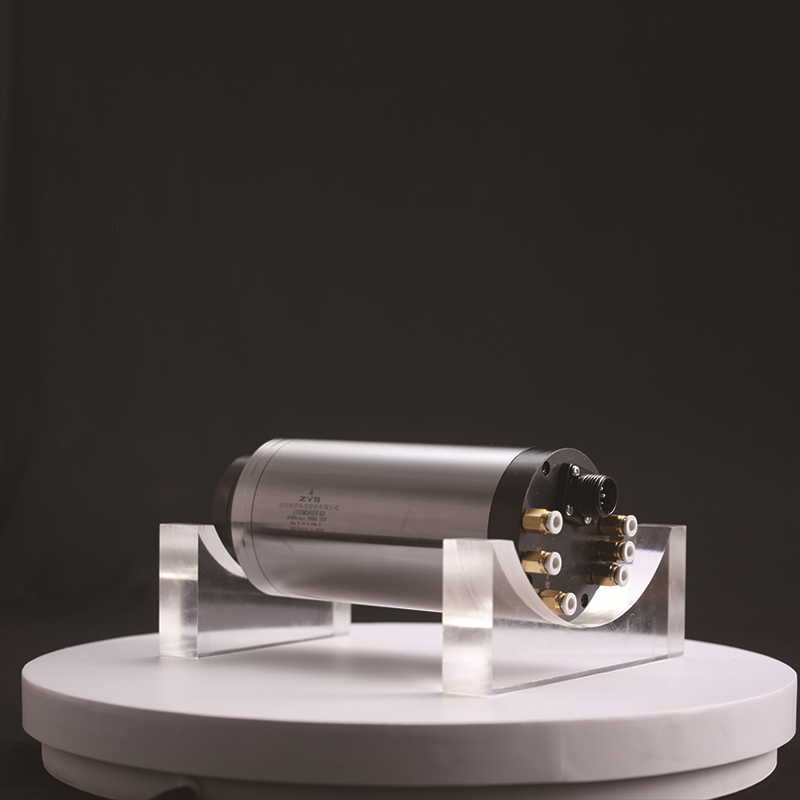

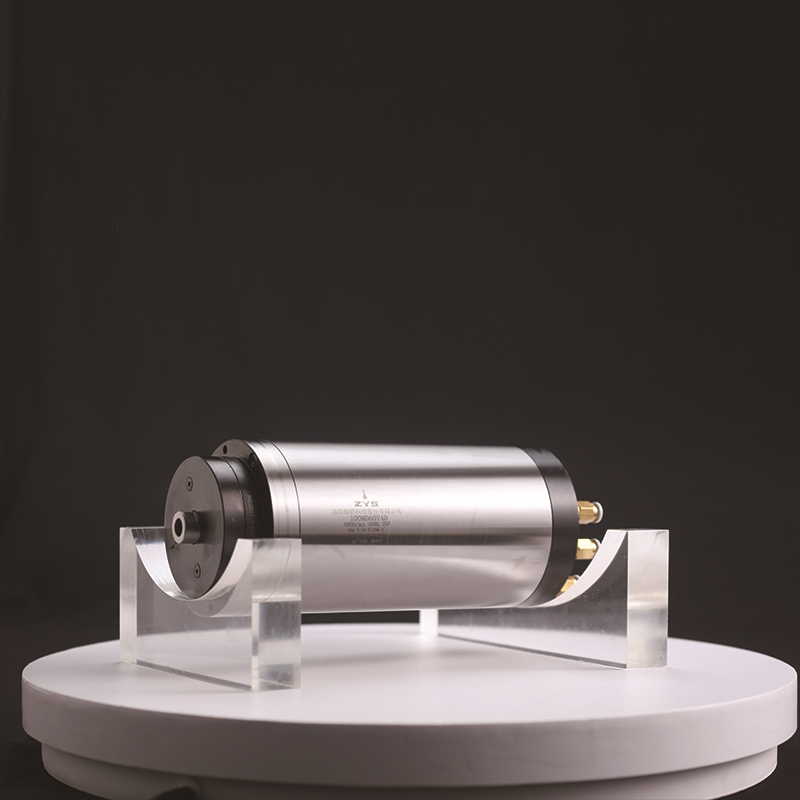

High-frequency grinding spindles

The electric spindle for grinding have MD, MDF, MDT, MDS, MDK series. Grinding spindles are characterized by high precision, high speed, high power and high rigidity. Tool grinding spindles are widely used in internal grinding, external grinding, forming grinding, thread grinding, etc.

Product features of ZYS grinding spindle:

1.Constant power section design reduces the cost of the inverter.

2.Reliable life with the application of P4 precision ceramic ball bearings.

3. Low heat loss with use of Copper rotor motor or imported motor.

Application of spindles for grinding: suitable for internal grinding, external grinding, broach grinding and thread grinding.

PRODUCT LIST

The Milestone of ZYS spindle products:

1958 China's first electric spindle
1980 China's first pneumatic static spindle
1995 China's first machining center spindle
1999 China's first engraving and milling spindle
2006 China's first precision turning spindle
2016 China's first permanent magnet workpiece spindle
2017 Research and development of high-end machining center electric spindle
2018 Research and development of intelligent spindle

Product features of ZYS motorized spindles:

1. Alternative import

All key components of the product are independently researched and developed, and the performance has reached the same level of foreign products, and the quality is reliable.

2. Professional customization

According to the actual work situation of the customer, the optimal design obtained from various factors can be integrated to meet the individual needs.

3. Flexible configuration

The spindle can be equipped with temperature sensor (temperature measurement and temperature switch), vibration sensor, proximity switch, encoder, rotary joint, etc. according to customer's requirements. At the same time, the spindle electrical components adopt well-known brands and have good compatibility.

4. Quality service

Pre-sales technical exchange is sufficient, after-sales service response is fast, product maintenance cycle is short.

The brief introduction of ZYS spindle workshop:

In 1958, Luoyang Bearing Research Institute set the 308 Research Group to develop the spindles. After more than 60 years of development, it has gradually developed from the original scientific research institution into the company which collects the spindle research, development and production as a whole. The production area of spindle workshop reached 32,800 square meters. Luoyang Bearing Research Institute Co., Ltd. is the main drafting unit of spindle national standard, the chairman unit of the spindle branch of China Machine Tool Industry Association, the leader of the 863 spindle project, the responsible unit of the “Eighth Five-Year Plan”, “Ninth Five-Year Plan”, “Tenth Five-Year Plan” and major national science and technology projects for CNC machine tool spindle. It is also the location of Henan Machine Tool Spindle Engineering Technology Research Center.

Luoyang Bearing Research Institute Co., Ltd. has an annual production capacity of 6000 sets of spindles.

ZYS full support on motorized spindles:

Luoyang Bearing Research Institute Co., Ltd. has excellent technical support, production support, quality system support and test equipment support for motorized spindle.

Technical support:

I. Shaft analysis and optimization

In cooperation with Tsinghua University (a well-known university in China), we integrated ZYS expert experience accumulated in the high-speed shafting dynamic analysis and developed the analysis software for spindle shafting dynamic.

We achieve the accurate calculation and analysis of the spindle rotor system under different stress conditions, different bearing assembly forms and different bearing spans. Through parameter adjustment and optimization of the shafting mechanism, the quantitative value of key indicators can be obtained during the design initial stage, such as spindle mode, bearing service life and critical speed.

II. Motor design and optimization

In cooperation with Hefei University of Technology, we integrated our expert experience and database accumulated in the design and analysis of high-speed motors, and developed the design and analysis software for spindle motors.

After the electromagnetic design of the spindle high-speed motor, we can analyze the spindle torque, output current and overload capacity at rated operating point through computer simulation, and calculate the motor heating condition under the simulated working condition to ensure that the spindle design can meet the requirements under actual situation.

III. Intelligent technology of machine tool spindle

ZYS spindle is equipped with various sensors such as temperature, vibration, displacement and distance. Sensor signals are continuously monitored by an intelligent system. It can prevent and protect the spindle when the temperature rises, the vibration intensifies, or the life of fixture is about to expire.

IV. Independent and complete design system

ZYS has professional technical team and we have our independent and complete design system on the thermal analysis, drive system matching, cooling system design, lubrication system design, main bearing design, motor design, shaft design for the spindle research and development.

V. Multi-field coupling simulation

The finite element simulation software is used to analyze the temperature field distribution, bearing stress variation and spindle thermal deformation law of the current spindle.

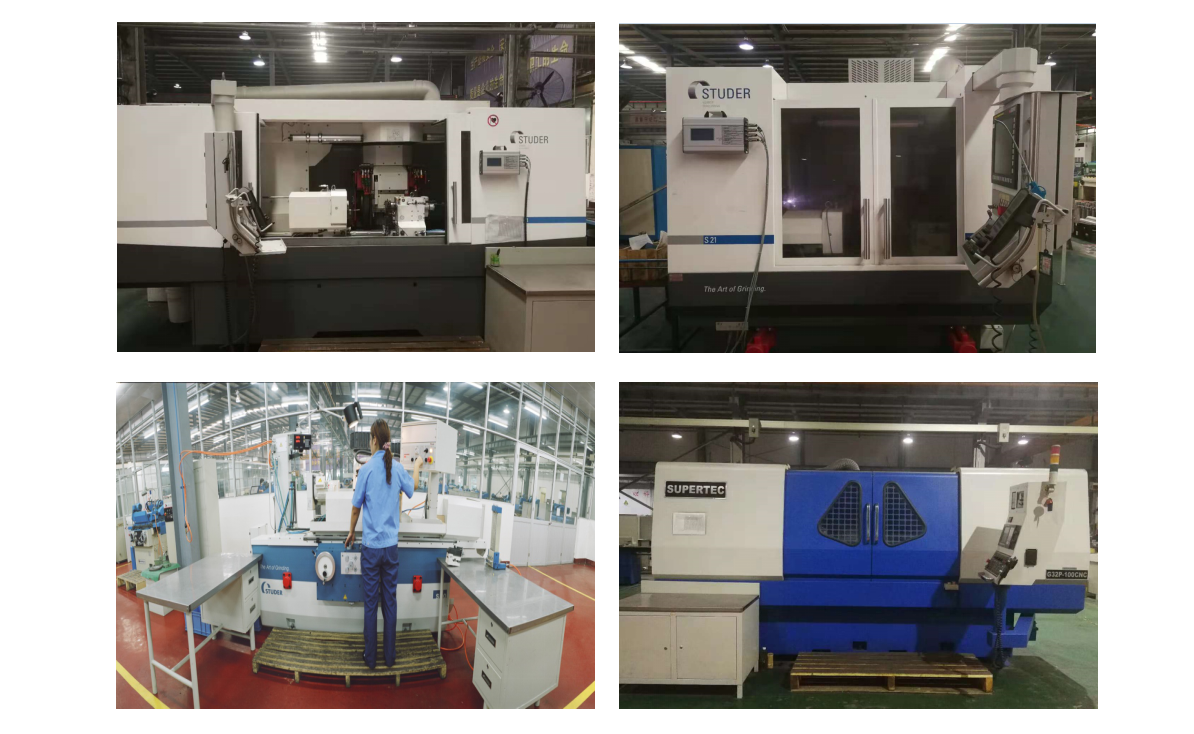

Production support:

I. Excellent production guarantee ability

II. High-power motors, precision bearings and parts

High-precision spindle parts are produced by optimal control from materials, heat treatment, stability treatment and precision machining.

The motor is completely developed independently. Motor has asynchronous aluminum rotor, asynchronous copper rotor, and permanent magnet synchronous motor.

Quality support:

I. Comprehensive inspection and control

II. Perfect quality system

ZYS has a sound quality system and has passed ISO and CE certification, which provides a strong guarantee for the quality and stability of electrical spindle products.

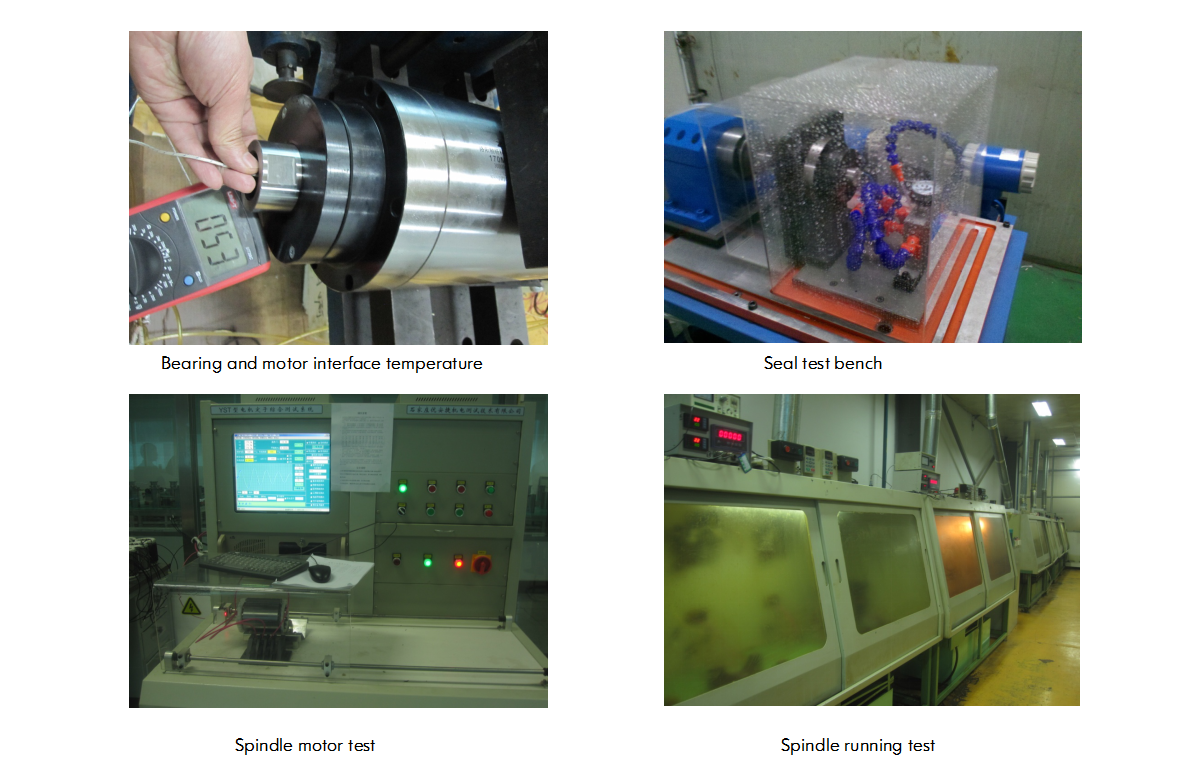

Test support:

I. Rigid test test bench

ZYS rigid test bench has the advantages of high measurement accuracy, low repeatability error, and automatic stepless acceleration. It can verify the rigidity of the spindle and provide data support for the shaft system design. It can ensure the consistency of the rigidity of the finished spindle.

II. Motor torque test

ZYS motor torque test can test the torque, heat generation, efficiency, overload capability and power factor of the electric spindle. ZYS motor torque test also can realize the torque-speed characteristic curve mapping.

III. Comprehensive performance testing

Spindle accuracy control	Spindle dynamic test control before delivery
1.Unique identification number of important part	1. Real-time monitoring of the spindle in no-load test
2. File important processing dimension record as quality documents for technical analysis	2. Improve the inspection standard: the spindle vibration value is increased from less than 1.5mm/s to less than 1mm/s at the maximum speed, and the highest standard is less than 0.6mm/s.
3. Increase the part accuracy and shape accuracy by 30% by improving equipment processing accuracy and optimize machining process.	3. The temperature rise of the spindle is controlled at an optimum state of 15 degrees at the maximum speed.
4. The accuracy of shaft end runout of the assembled product is less than 2um, and partly 1um.	4. Spindle rigidity test

ZYS 100% spindle products pass comprehensive performance test.

Application cases I of ZYS grinding spindles:

Product Case	170MD09Z30
Application background	In order to improve the efficiency of grinding tools, one of our customers put forward high-power and high-stiffness requirements on the basis of 170MD09Z20. Our R&D department developed 170MD09Z30 based on market development and customer requirements.
Main parameters of grinding spindle	Rated speed: 9000r/min	Rated power: 30Kw (S6)	Accuracy: inner hole runout 0.002mm; end face runout 0.002mm.
Indicator improvement	Compared with 170MD09Z20, the power is increased by 50%, and the stiffness is increased by 20%.
Client feedback	The use performance is improved obviously, the processing quality is stable, and the service life is reliable.

Application cases II of ZYS grinding spindles:

Product Case	Comprehensive solution for segmental grinding machine
Application background	In the process of machining tools in a southern enterprise, the segmental grinding machine has the problem of low grinding efficiency, and the customer hopes to increase the processing cycle by about 5S. After receiving the customer's entrustment, ZYS investigated the processing conditions in detail, and combined the characteristics of the processing tools to propose a comprehensive solution of workpiece axis + rough grinding spindle + fine grinding spindle.
Main parameters of segmental grinding machine	Workpiece grinding method: center-moving grinding with rough and fine grinding. Diameter range of grinding workpiece: 0.05-20.0mm. Automatic feeding and receiving by manipulator.
ZYS spindle solution	Workpiece motorized spindle: 120MD03Z1.8-HM Rough grinding spindle: 170MD09Z12HM Fine grinding spindle: 120MD12Z3.4HM

Technical parameters of ZYS grinding spindles:

Type	Motor parameter					Dimension
	Power (KW) S6/ S1	Voltage (V)	Current (A) S6/ S1	Speed (r/min)	Frequency (Hz)	D	L	D1	L1	D2	L2	d1	L1	M	L2	Bearing P4	Remark
80MD150Y0.8	0.8/0.5	360	3/1.43	150000	2500	80	110	8	12	-	-	3.175	14	-	-	1-VEB08/NS 1-VEB08/NS
80MD120Y0.9	0.9/0.55	220	4.6/2.8	120000	2000	80	150	48	8	10	5	5	9	M5	8	1-VEB10/1-VEB10	2GDZ120
80MD90Y2.5	2.5/1.5	220	10.8/6.5	90000	1500	80	170	58	22	11	10	6	11	M6	11	2-B7001/1-B7001	GDZ90
100MD90Y3	-/3	350	-/8	90000	1500	100	165	80	24	16	8	9	16	M8X2	21	2-7003CE/2-7002CE
120MD75Y3.5	3.5/2.1	350	9/5.4	75000	1250	120	190	12	24	16	9	9	17	M9*1.25	14	2-B7003/2-B7001	2GDZ75
80MD60Y1.5	1.5/0.9	153	9/5.4	60000	1000	80	160	55	24	14	9	8	16	M8	14	2-B7002/1-B7002	DZ60B
100MD60Y4	4/2.5	350	10/6.3	60000	1000	100	185	66	24	16	8	8	13	M8*1	15	2-B7003/2-B7003	GDZ60B
120MD60Y6	6/3.6	350	16/10	60000	1000	120	220	70	11	18	11	10	19	M10*1.5	19	2-B7004/2-B7003	2GDZ60
120MD60Y7	-/7	380	-/15	60000	1000	120	222	90	28	23	10	14	22	M14*1.5	20	2-H71905HQ1/2-H71904HQ1
120MD51Y8	8/4.8	350	20/12	51000	850	120	250	70	12	23	13	14	23	M14*1.5	19	2-B7005/2-B7004	2GDZ51
120MD48Y5.8	5.8/3.5	350	15/9	48000	800	120	230	80	23	23	14	14	24	M14*1.5	19	2-B7005/2-B7004	GDZ48
120MD42Y9	9/5.5	350	20/12	42000	700	120	230	90	27	23	12	14	24	M14*1.5	19	2-B7005/2-B7004	GDZ42S
120MD36Y8.5	8/5.5	350	18/11	36000	600	120	255	92	30	28	12	16	27	M16*1.5	20	2-B7006/2-B7005	GDZ36B
120MD36Y8.5C	8/5.5	350	18/11	36000	600	120	255	92	28	33	15	20	34	M20*1.5	20	2-B7007/2-B7005	GDZ36C
150MD36Y11	11/7	350	30/15.6	36000	600	150	270	105	32	33	14	20	34	M20*1.5	20	2-B7007/2-B7006	2GDZ36
150MD36Y11A	-/11	360	/22	36000	1200	150	270	116	30	33	13	20	34	M20*1.5	20	2-B7007/2-B7006
120MD30Y11	11/6.6	350	30/17.8	30000	1000	120	315	70	10	33	7	20	34	M20*1.5	19	2-B7007/2-B7006	2GDZ30N
120MD24Y12	12/7.2	350	30/18	24000	800	120	315	70	10	43	8	22	38	M22*2	24	2-B7009/2-B7006	2GDZ24N
150MD24Y12.5	12.5/7.5	350	26.7/16	24000	400	150	310	98	32	38	19	22	38	M22*2	26	2-B7008/2-B7007	GDZ24A
150MD24Y16	16/10	350	38/23	24000	800	150	320	105	30	43	18	25	42	M25*2	25	2-B7009/2-B7007	2GDZ24
150MD24Y16A	-/16	380	-/30	24000	800	150	331	122	37	47	16	28	44	M28*2	25	2-B7010/2-B7009
170MD24Y22	22/14	350	-/30.2	24000	800	120	305	110	40	43	22	25	42	M25*2	24	2-B7009/HQ12-B7008/HQ1
150MD18Y14.5	14.5/8.6	350	32/20	18000	300	150	327	110	38	43	22	25	40	M25*2	30	2-B7009/2-B7008	GDZ18A
170MD18Y16	16/10	350	35/21.2	18000	600	170	305	110	40	43	22	25	42	M25*2	24	2-B7009/2-B7008	GDZ18R
170MD15Y20	20/12	350	46.3/27.8	15000	500	170	320	116	38	53	17	32	50	M30*2	25	2-B7011/2-B7009	2GDZ15
170MD15Y16	16/10	350	35/21.2	15000	500	170	325	116	38	48	24	28	47	M28*2	25	2-B7010/2-B7009	GDZ15R
170MD15Y25A	-/25	380	-/46	15000	500	170	414	140	38	53	18	32	49	M32*2	23	2-B7012/2-B7010
200MDF15Y28	28/18	380/300	44/35	15000/8000	500/267	200	430	140	42	53	25	32	50	M30*2	28	2-B7011/2-B7010
170MD12Y16	16/10	350	36/22	12000	400	170	330	124	40	53	22	36	40	M33*2	30	2-B7011/2-B7009	GDZ12R-10
170MD12Y20	20/12	350	41.5/25	12000	400	170	370	124	40	53	22	36	40	M33*2	30	2-B7011/2-B7009	GDZ12R-12
170MD12Y32	32/20	350	36/22	12000	400	170	370	124	40	53	22	36	40	M33*2	30	2-B7011/2-B7009
250MD10Y17	17.6/11	350	38.5/24	10000	334	250	350	140	15	53	28	25	35	M24*1.5	33	2-B7011/2-B7009
170MD09Y20	20/12.5	350	43/26.9	9000	300	170	383	124	40	53	22	36	40	M33*2	30	2-B7011/2-B7009	GDZ09
210MD09Y33	33/20.6	350	70/43.8	9000	300	210	403	140	44	55	54	-	-	Cone 1:8		2-B7212/2-B7009	2GDZ09
210MD09Y33B	-/33	350	70	9000	300	210	522	165	70	68	53	45	55	M42*2	40	3-7014/2-7211
210MD06Y20	-/20	350	42.5	6000	200	210	491	140	44	55	54	-	-	Cone 1:8	46	2-7212/2-B7009
200MD06Y20	-/20	380	-	6000	200	200	557	165	20	77	123	-	-	Cone 1:10	66	4-7016/2-7011
120MD75Z3.5	3.5/2.2	350	-/9	75000	1250	120	190	65	24	16	9	9	17	M9*1.25	14	2-H71903HQ1/2-H7001HQ1
100MD60Z4	4/2.5	350	10/6.3	60000	1000	100	185	76	26	16	8.5	8	14	M8*1	15	2-H7003HQ1/2-H7003HQ1
120MD48Z7	7/4.5	350	15.6/9.8	48000	800	120	230	90	25.5	23	11.5	14	24	M14*1.5	19	2-H7005HQ1/2-H7004HQ1
120MD36Z9.5A	9.5/6	350	-/12.6	36000	600	120	255	94	36	28	14	16	27	M16*1.5	20	2-H7006HQ1/2-H7005HQ1
150MD36Z11A	-/11	360	-/22	36000	1200	150	270	116	30	33	13	20	34	M20*1.5	20	2-H7007HQ1/2-H7006HQ1
120MD24Z5.5	5.5/3.3	250	18/11	24000	400	120	255	92	30	28	12	16	27	M16*1.5	20	2-B7006/2-B7005	GDZ24K
150MD24Z16	16/10	350	38/24	24000	800	150	327	121	30	43	19	25	42	M25*2	25	2-B7009HQ1/2-H7007HQ1
150MD24Z16-YT	-/16	380	-/30	24000	800	150	331	122	37	47	16	28	44	M28*2	25	2-H7010HQ1/2-H7009HQ1
150MD18Z9	9/5.5	350	22.4/13.5	18000	300	150	290	95	40	38	18	22	36	M22*2	28	2-B7008/2-B7007	DZ18B
170MD18Z16	16/10	350	-/19.7	18000	300	170	340	120	46	43	20	25	42	M25*2	26	2-B7009/2-B7007	GDZ18G
170MD15Z25	-/25	380	-/46	15000	500	170	414	140	38	53	18	32	49	M32*2	23	2-H7012HQ1/2-H7010HQ1
170MD15Z16	16/10	350	35/21.2	15000	500	170	325	116	38	48	24	28	47	M28*2	25	2-B7010/2-B7009
170MD15Z20	20/12	350	46.3/27.8	15000	500	170	320	116	38	53	17	32	50	-	25	2-B7011/2-B7009
170MD12Z20	20/12	350	41.5/25	12000	400	170	370	124	40	53	22	36	40	M33*2	30	2-B7011/2-B7009
160MDF09Z9	-/9	350	19	9000	300	160	280	120	42	38	18				60	2-H7009HQ1/2-H7007HQ1
170MD07Z8.5	8.5/5	350	19/11.5	7000	234	170	320	120	117	50	24	33	52	M33*1.5	27	3-VEX55/2-VEX45
170MD09Z20	20/12.5	350	43	9000	300	170	383	124	70	50	24					3-B7011/2-B7009
210MD09Z33	33/20.6	350	70/43.8	9000	300	210	403	140	44	55	54					2-B7212/2-B7009	2GDZ09
170MD07Z8.5W	8.5/5	350	19/11.5	7000	234	170	320	120	117	50	74					3-VEX55/2-VEX45	2GDZ07
200MD06Z8	-/8	380	-/15	6000	100	200	370	150	97	57	54					3-B7012/2-B7010
200MD06Z20	-/20	350	42.5	6000	200	200	491	150	58	50	80					2-7212AC/2-7009AC
230MDF06Z40	-/40	380	75	6000	200	230	763	-	-	-	-					4-B7017/2-7013
180MD03Z10B	-/10	380	21	3000	100	180	530	165	20	-	-					4-7016/2-7011
200MD03Z12	12/8	350	18.5	3000/2100	100/70	200	470	165	100	75	15					4-7016/2-7010
240MD03Z16	-/16	380	-/32	3000	100	240	415	178	104	80	20					4-7017/2-7013
260MD03Z24B	15	380/350	33/36	3000/1500	100/50	260	423	165	57	75	15					3-7016/2-7013
240MD015Z10	10/6.25	-	30/18.7	1500	50	240	410	190	92	85	24					3-7017/2-7012	GDZ015
80MD150Q0.8	0.8/5.5	350	3/1.43	150000	2500	80	110	8	12	-	-	3.175	14	-	-	1-VEB08NS/1-VEB08NS
80MD120Q0.9	0.9/0.55	220	4.6/2.8	120000	2000	80	150	48	8	10	5	5	9	M5	8	1-VEB10/1-VEB10
120MD100Q2.5	-/2.5	200	-/9	100000	1667	120	177	75	3.5	19	8	11	8	M10*1.25	12	1-71904/1-71903
120MD75Q8	85	350	18.4/11.5	75000	1250	120	210	80	25	18.5	13	10	19	M1081.5	19	2-VEX20NS/2-VEX17NS
100MD60Q6	6/3.6	350	16/10	60000	1000	100	255	-	-	28	9	8	16	M8*1	15	2-VEX30NS/2-VEX20NS	2GDZ60Q
100MD60Q9	-/9	350	13.3	60000	1000	100	255	-	-	28	9	16	23	M16*1.5	30	2-VEX30NS/2-VEX20NS
140MD60Q9	9/5.5	350	13.3/8.3	60000	1000	149.8	260	129.7	50	53	13.5	16	25	M16*1.5	19	2-VEX30NS/2-VEX25NS
170MD60Q(HW)	7.5/4.5	380	14.4/9	48000/60000	800/1000	170	220	-	-	28	6.5	16	24	M16*1.5	20	2-VEX30NS/2-VEX25NS
120MD51Q8	8/4.8	350	20/12	51000	850	120	232	80	30	23	10	14	23	M14*1.5	19	2-B7005/2-B7004
170MD36Q13.6	13.6/8.5	350	28.6/18	36000	600	170	390	115	47	43	32	25	38	M25*2	29	2-VEX45NS/2-VEX35NS
120MD30Q12	19/12	350	49/31	30000	1000	120	370	-	-	43	15	28	44	M28*2	29	2-VEX45NS/2-VEX30NS
170MD30Q32H	32/21	350	46	30000	1000	170	340	126	45	53	27	32	46	M32*2	25	2-H7011CHQ1/2-H7009CHQ1
150MD30Q23	23/14.4	380	49/30	30000	1000	149.8	260	129.7	50	53	13.5	32	50	M32*2	26	2-VEX55NS/2-VEX40NS
150MD21Q18	18/11	380	35.5/21.4	21000	350	150	320	110	38	43	18	25	40	M25*2	30	2-B7009/2-B7008
170MD24Q30H	30/19	350	41	24000	800	170	340	136	45	63	27	36	50	M36*2	30	2-H7014CHQ1/2-H7009CHQ1
170MD12Q40H	40/30	350	58	12000	600	170	415	137	49	68	27	40	50	M40*2	30	2-H7014CHQ1/2-H7009CHQ1
210MD09Q46H	46/33	350	70	9000	300	210	560	190	24	97	30	48	55	M48*2	40	2-H7020CHQ1/2-7211CP4

To learn more about ZYS other series of electrical spindles, mechnical center spindles, please visit /spindles/.
